Function: Module mounting via back panel
Angle: 90° angular
Attachment: 2 x M4

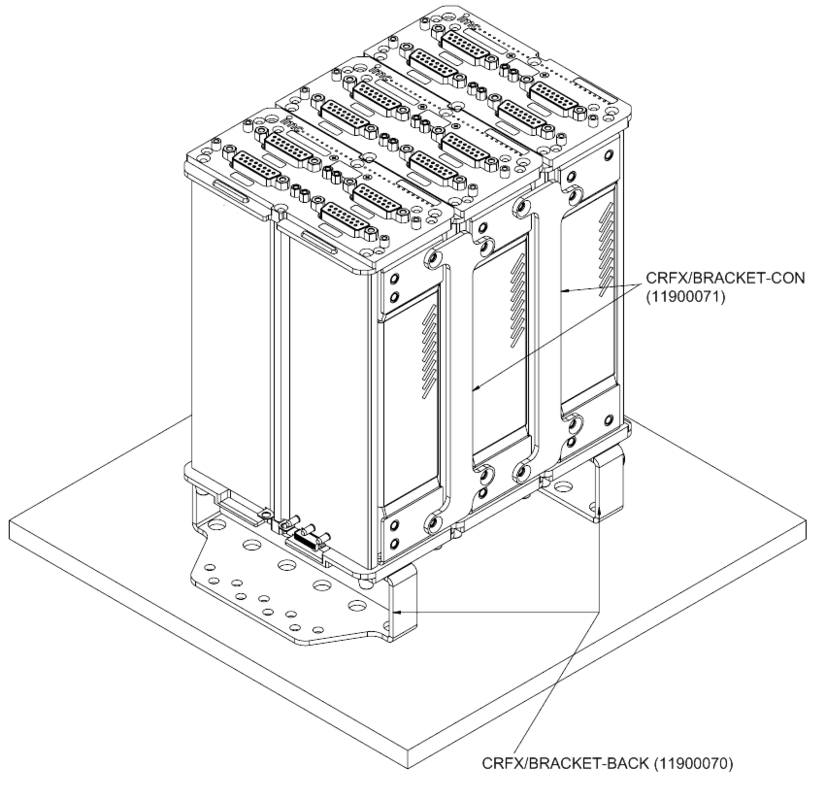

Properties: The angular mounting bracket: CRFX/BRACKET-BACK is designed for installing imc CRONOSflex modules on a flat surface. This bracket must be installed on the module's back panel.
Due to the tight spacing between the block of modules and the flat surface, the modules require the special accessory: 90° angular LEMO and RJ45 plug.
Special accessories: 90° angular LEMO and RJ45 plug
- 1x back panel mounting bracket
- 2x cylinder screws DIN 7984 M4x8
Order Code: CRFX/BRACKET-BACK article number: 1190070
